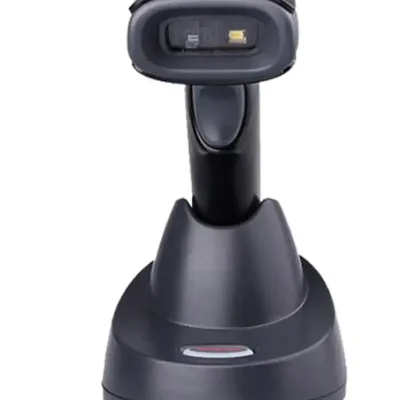

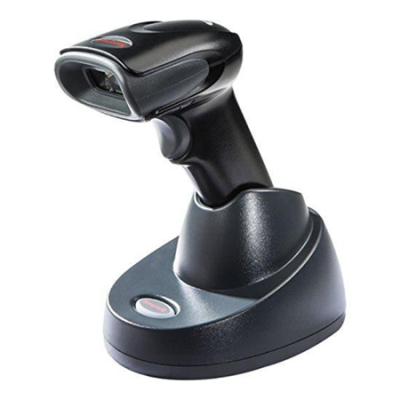

Voyager XP 1472 – Cordless 2D Barcode Scanner Specifications

Scanning Performance
Scan Technology: 2D Area-Imaging CMOS
Sensor Resolution: 1040 × 720 pixels
Supported Barcodes: 1D, 2D, PDF417, Digimarc, OCR
Motion Tolerance: Up to 70 cm/s (for 13 mil UPC)
Minimum Print Contrast: 20%
Depth of Field (SR):
5 mil Code 39: 28 – 180 mm
13 mil UPC: 20 – 450 mm
20 mil Code 39: 25 – 550 mm

Wireless Connectivity
Wireless Technology: Bluetooth 4.2
Wireless Range: Up to 30 meters (line of sight)

Battery & Power
Battery Type: Li-ion 2400 mAh
Scans per Charge: Up to 50,000 scans
Operating Time: Up to 14 hours (typical use)
Charging Time: Approximately 4.5 hours
Charging Power:
USB: 2.5 W
Adapter: 5 W

Physical Characteristics
Scanner Dimensions: 62 × 173 × 82 mm
Charging Base Dimensions: 132 × 102 × 81 mm
Scanner Weight: Approx. 210 g
Base Weight: Approx. 180 g
Color: Black

Durability & Environmental
Drop Resistance:
Scanner: 1.8 m (multiple drops to concrete)
Base: 1.0 m
Protection Rating: IP42
Operating Temperature:
Charging: 5°C to 40°C
Non-Charging: 0°C to 50°C
Storage Temperature: −40°C to 70°C
Humidity: 0–95% RH (non-condensing)
Ambient Light Immunity: Up to 100,000 lux
