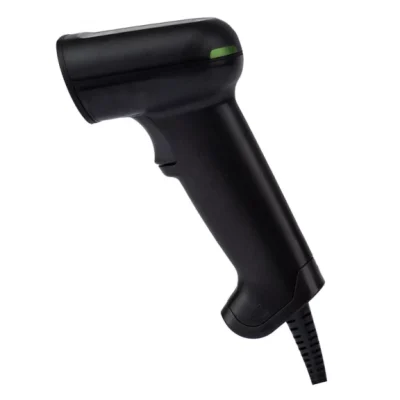

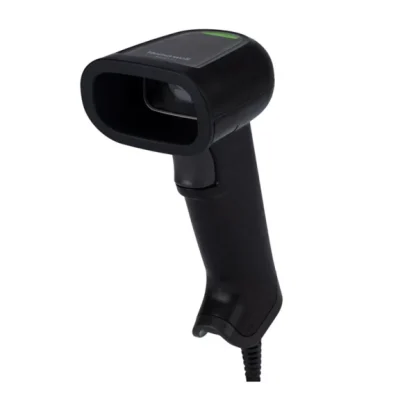

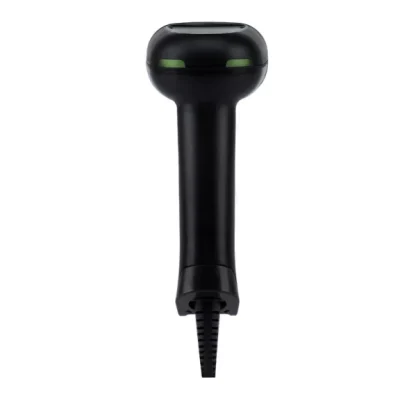

Xenon Ultra 1960 (Corded) is a premium high-performance 2D barcode scanner engineered for intensive retail, healthcare, and industrial applications. Built with next-generation scanning architecture, it delivers exceptional performance on damaged, low-quality, or difficult barcodes. With advanced imaging technology and robust durability, it ensures reliable performance for high-volume scanning environments.
Xenon Ultra 1960 – Corded 2D Barcode Scanner Specifications
Scanning Performance
Scan Technology: Advanced 2D Area-Imaging CMOS
Sensor Resolution: 1280 × 800 pixels
Supported Barcodes: 1D, 2D, PDF417, DotCode, Digimarc, OCR
Motion Tolerance: Up to 400 cm/s (for 13 mil UPC)
Minimum Print Contrast: 15%
Depth of Field (SR):
5 mil Code 39: 25 – 200 mm
13 mil UPC: 15 – 500 mm
20 mil Code 39: 20 – 600 mm
Connectivity
Interface: USB, RS-232, Keyboard Wedge
Host System Compatibility: Windows, Linux, POS systems
Power
Input Voltage: 5 VDC ±5%
Operating Power: 2.5 W (typical)
Standby Power: 0.5 W
Physical Characteristics
Scanner Dimensions: 108 × 71 × 160 mm
Scanner Weight: Approx. 170 g
Color: Black
Durability & Environmental
Drop Resistance: Up to 1.8 m (multiple drops to concrete)
Tumble Resistance: 2,000 tumbles at 0.5 m
Protection Rating: IP52
Operating Temperature: 0°C to 50°C
Storage Temperature: −40°C to 70°C
Humidity: 0–95% RH (non-condensing)
Ambient Light Immunity: Up to 100,000 lux
